Magnet Separator [ MAGTON (MGT) ] : Secondary Filter

  • High-magnetic, high-efficiency design for high performance separation.
    Ideal for magnetic particles of glinding and honing.
    Reduces coolant tank cleaning works to the absolute minimum to extend coolant life and reduce costs.
    Also extends grinding wheel life and improves product quality.

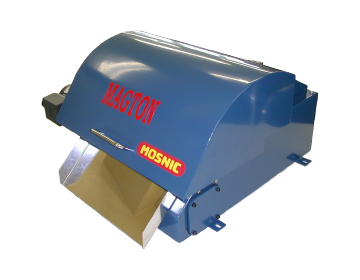

  • MAGTON

Features

A pump delivers primarily filtered coolant or grinding dirty coolant to the Magton. When the coolant passes through the Magton drum, magnets installed inside the drum interior capture and filter out sludge at an over 90% down to 10μm filter rating.
Requires no consummables parts nor replacing parts.

Main Specifications

Rare earth magnets which has 3 times stronger magnetic force than ferites. Superior squeezing mechanism emits sludge in a dry and crumbly state.
Models range is from 40L/min to 240L/min. (We can also manufacture a model filtering capacity up to 1500L/min.) Single or multiple units can be used depending on filtering volume needs.

MGT (MAGTON)

Basic Specification
Filter Rating 50μm·90% 30μm·90% 20μm·90% 10μm·90%
Filter Volume
(liters/min)		 ～500 ～1,000 ～2,000 ～3,000 ～3,500 ～6,000
Coolant Water soluble Oils
Applicable Chip Shape Table
Material Shape
Cutting Polishing Washing
Non Magnetic Materials
50mm or Longer 50mm or shorter Needle-Shaped Floating Chips After Primary Stage
Sludge Grains
Magnetic Particles
(Steel)
50mm or Longer 50mm or shorter Needle-Shaped Floating Chips After Primary Stage
Sludge Grains
Magnetic Particles
(FC)
50mm or Longer 50mm or shorter Needle-Shaped Floating Chips After Primary Stage
Sludge Grains
* Standard Option :
    Sedimentary tank of fine sludge and polishing powder,
    which is installed clean coolant outlet of magnetic separator filtration.

↑
